The tool for printing out honeycombs "Klin"

The tool for printing out honeycombs "Klin"

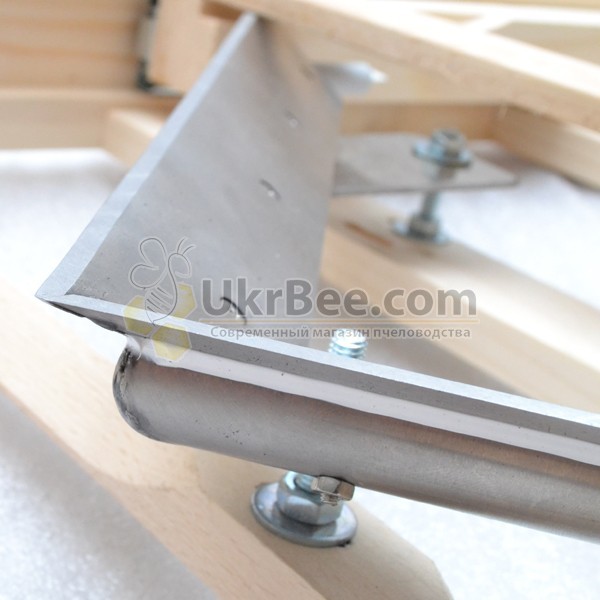

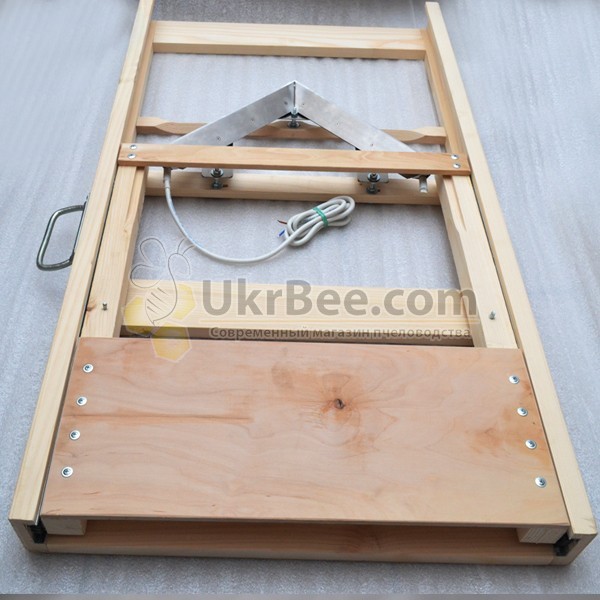

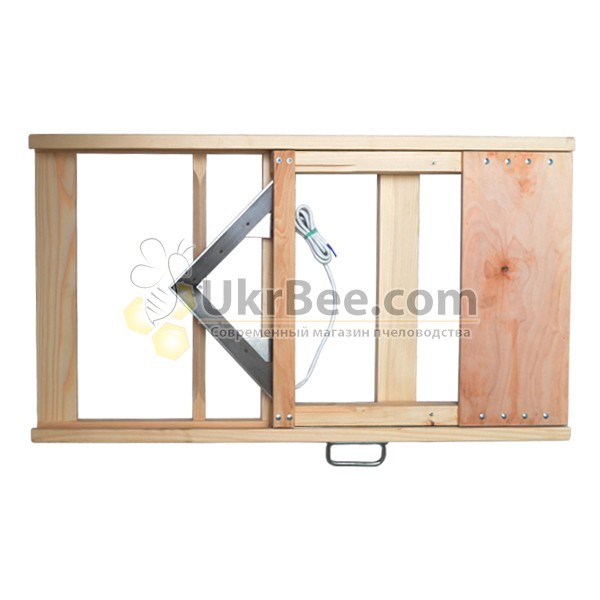

The printer of honeycomb "Klin" is designed to speed up the process of printing and, accordingly, pumping honey from honeycombs. The printer has 2 electric heated knives made of stainless steel. The power required to heat the knives is 12 Volts, you can use the power from the step-down transformer 220 / 12V or 220 / 24V; Direct or alternating current (as well as a car charger).

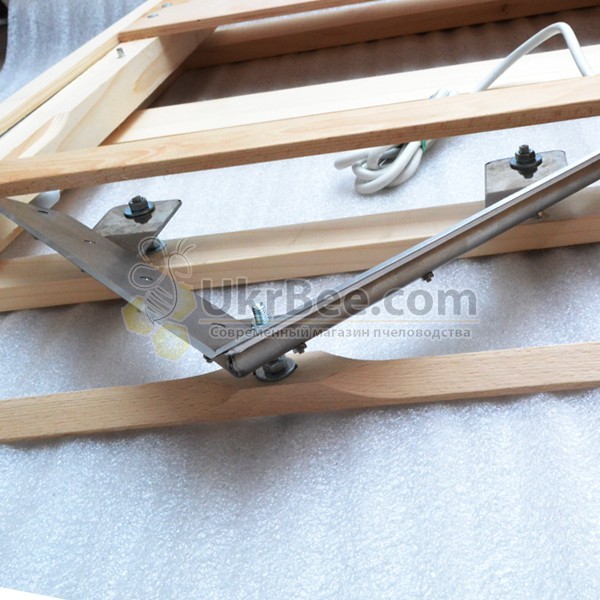

In order to print a honeycomb, you will need to place a frame on the printout, the frame is securely placed in the place prepared for it, and move the moving part of the printer towards the knives. It is possible to adjust the knives, both vertically and horizontally. When working with the printer, it is worth considering that the full honey frame, while in a horizontal position, has a sag.

Caution: Use caution when handling the tool. In the process of moving the frame, the beekeeper's hands are in close proximity to the knives.

Specifications:

•     The overall dimensions are 75 × 540 × 1000mm.
•     Weight 6.0 kg
•     Material tree
•     Cutting tools - stainless steel knives with electric heating.
