Drilling pile driving machine (5 drills)

Beekeeping drilling machine (220V, 145W, 1370 rpm)

The machine is used for drilling holes in the side slats of the framework of the hive. The machine allows to drill 5 holes in the bar in one procedure. The speed and accuracy of the work performed is the main advantage of the machine.

The holes drilled with the help of the machine are exactly on the same plane, which makes it possible to set the wax sheets evenly and get even honeycombs.

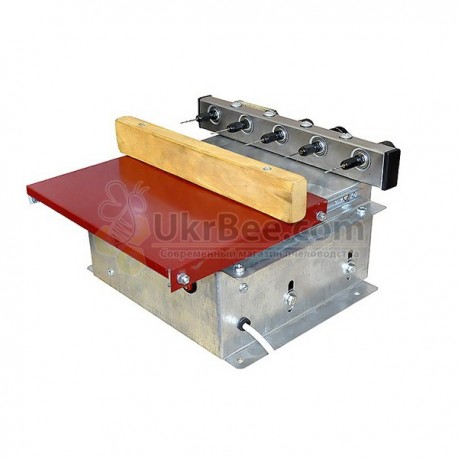

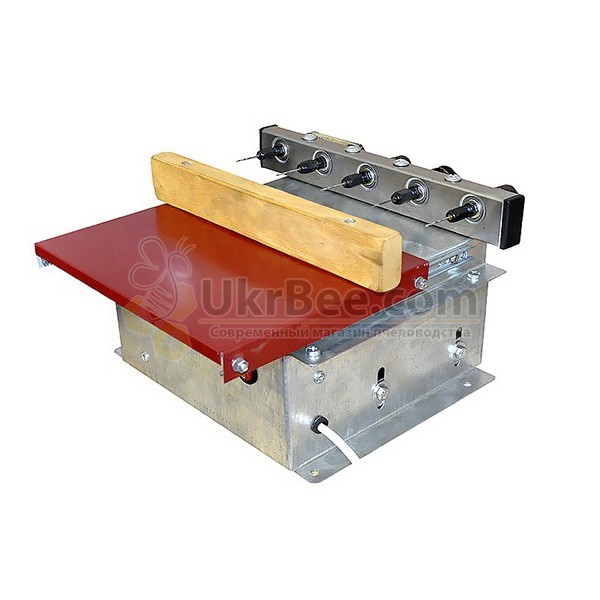

The machine is made of the main components:

•     Feeding carriage with ball guides to feed the workpiece to the drilling mechanism;

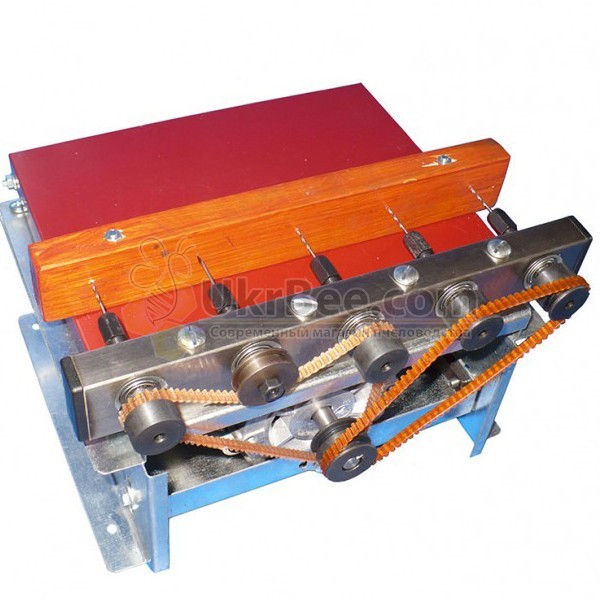

•     Drilling mechanism for 5 heads with collet chucks on bearings;
•     Powerful single-phase motor 145W with a 220V household power supply with belt transmission;
•     In the complete set: the machine tool, spare belts (2шт), spare drill 1,5мм, the instruction, packing.

Attention: at the top of the site when ordering (before you buy), you need to select the right machine model (frame size, number of holes ...).

Technical specifications:

• Product weight: 6,5 kg;
• Engine: single-phase, 220V, 145W, 1370 rpm;
• Overall dimensions of the product: 180х220х270 mm;
• Tools used: drill bit 1.5 mm (4 pieces).

The machine for five drills allows drilling 230mm frames making 4 holes, and within 300mm making 5 holes for the wire.

Manufacturer: Pasechny production and innovation cooperative "PAVIK", Ukraine.
